Description

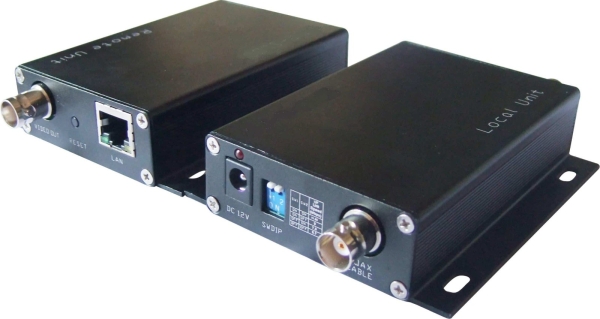

The maximum bandwidth can reach 50Mbps via RG59 ( 75-5 ) coaxial cable. This device should be used in pair, one as a local receiver and the other as a remote transmitter. It’s widely applied in system upgrading projects and many fields of railway, urban traffic, security surveillance. As an IP device you can use any IP camera, PC or even LAN switch.

Features

  • High-speed transmission of Ethernet network signal and Analog CVBS signal over one coaxial cable
  • Simultaneously transmit IP & Analog video signal as far as 500m.
  • Excellent real-time function.
  • The highest rate up to 50Mbps.
  • 10/100M network environments compatible.
  • Strong anti-interference, suitable for industrial environment use, easy installation.
  • Perfect solution to upgrade and renovate traditional analog system into digital IP surveillance system.
  • No need to install any computer drivers and software settings.

Specifications

Category
Description
Power
Power Supply
Power Adapter for Power Supply
Available Voltage Range
12VDC
Power Consumption
<4W
Signal Transmission Type and Terminal
Ethernet Communication Terminal
RJ45 Socket
Analog Video Terminal
BNC Terminal
Hybrid Transmission Terminal
BNC Terminal
Signal Transmission Type
High-speed Transmission of Ethernet Network Signal
Transmission Rate ( SY-75-5 )
50Mbps/s ( Maximum )
Transmission  Rate ( Coaxial Cable SY-75-5 )
Transmission Distance
Total Transmission Rate ( Maximum )
Transmission Rate ( Downlink Maximum )
Transmission Rate ( Uplink Maximum )
500m
50Mbps/s
38Mbps/s
12Mbps/s
LED Indicator
Power Indicator
1PC ( Red )
Ethernet Terminal Indicator
1PC ( Green )
Ethernet Data Transceiver Indicator
1PC ( Yellow )
Protection
Transmission Channel Lightening Protection
4KV 10/700us, common mode lightning protection: Level 4
1KV 10/700us, differential mode lightning protection: Level 1
Executive Standard: IEC61000-4-5
Product Electrostatic Protection
1a Contact Discharge Level 4
1b Air Discharge Level 4
Executive Standard: IEC61000-4-2
Product Physical
Characteristic
Dimensions (L × W × H)
120mm × 90mm × 24mm ( including the terminal length )
Material
Aluminum
Color
Black
Net weight
200g
Operating
Environment
Working Temperature
0° C -50° C
Storage Temperature
0° C -85° C
Humidity
0° C -95° C



Application example:

Installation Instructions and Steps:

1. Use a AN-CX-IP-A as the local receiver ( factory has set ): Connect a network cable with network switch (or computer, NVR); Connect “Video out” terminal to DVR or monitor; Connect “Coax Cable In” terminal to coaxial cable.
2. Use the other AN-CX-IP-A as a remote transmitter ( factory has set ): Connect “LAN” termianl to IP camera ( or other IP devices; such as: computers, etc. ); Connect “Video in” terminal to analog camera; Connect “Coax Cable Out” terminal to coaxial cable.
3. Supply power for the devices.


Ordering Information

AN-CX-IP-A
IP (LAN) & Analog over Coax Transceiver | Signal Extender, AC power 110/220.
