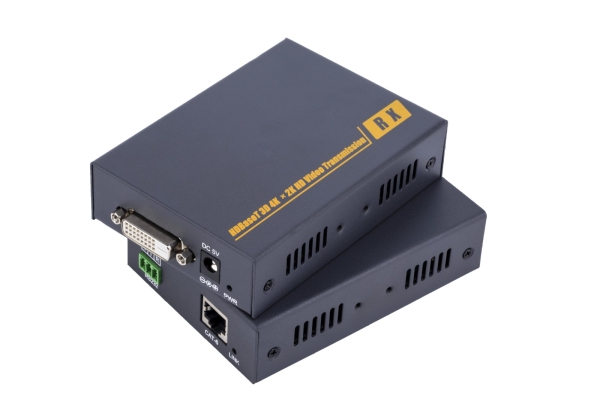

DVI Over Cat6 Extender With HDBaseT Support And RS-232 Port
Quantity
Description
The AN-DVI-UTP-EXT01 extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
-
Transmits DVI video signals up to 100m over a single CAT6 cable;
-
Support video resolution up to 1920*1080P@60Hz and 4K*2K;
-
Support HDBaseT technology;
-
Support RS232 signal bidirectional transmission, baud rate self-adaptive;
-
Support POC power supply; only power supply to RX;
-
Compliance with DVI 1.0 and HDCP 1.2 standard;
-
High compatibility, can auto-match source and display device;
-
Built-in automatic adjustment system, make the image smooth, clear and stable;
-
Built-in ESD protection system;
-
Simple to install, plug and play;
Specifications
|
Parameter
|
Description
|
|
|
Video
|
Standards
|
DVI 1.0; HDCP 1.2
|
|
Maximum pixel clock
|
165MHz
|
|
|
Maximum data rate
|
10.2Gbps
|
|
|
Resolution
|
1920X1080P@60Hz¡¢4K*2K
|
|
|
Connector
|
DVI-D
|
|
|
Impedance
|
100Ω
|
|
|
RS232
|
Interface
|
Industrial terminal
|
|
Signal direction
|
Bidirectional
|
|
|
Baud rate
|
Self-adaptive, Max£º115200bps
|
|
|
Data bits
|
8
|
|
|
HDbaseT
|
Interface
|
RJ45
|
|
Transmission distance
|
1080P: CAT6—100m
4K*2K: CAT6—70m
|
|
|
Other
|
Power supply
|
The power adapter: DC 12V/2A
|
|
Power dissipation
|
MAX 15W
|
|
|
Temperature
|
Operating: -5¡æ ~ +70¡æ
|
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
|
Dimension
|
94*71*25mm
|
|
|
The warranty
|
1 year free warranty
|
|
Installation
-

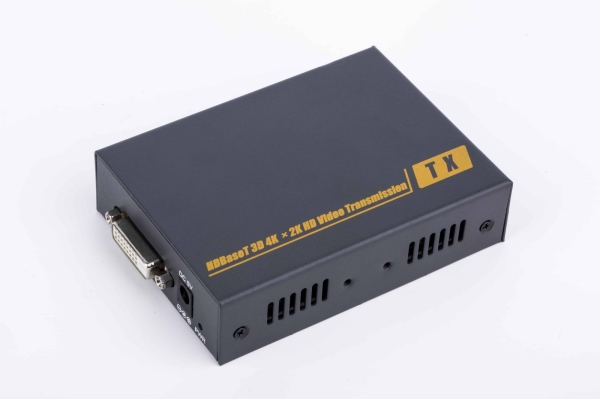

Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
-

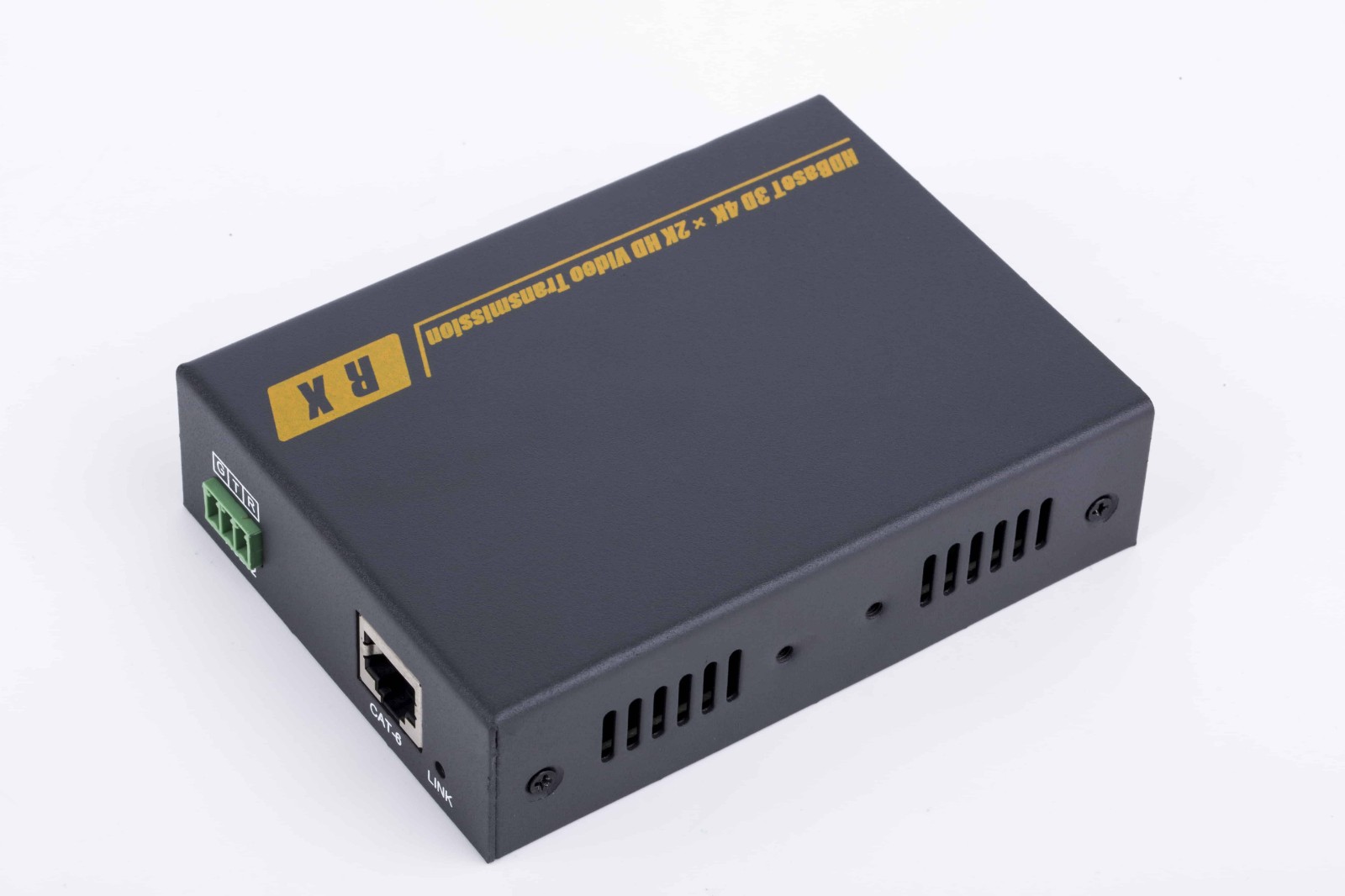

Connect the DVI output port of receiver to the display device with DVI cable,
-
Connect the transmitter HDbaseT port to the receiver HDbaseT port using a single CAT6 cable.
-
Connect the provided DC/12V power supplies to the power socket of the receiver,
Ordering Information
|
AN-DVI-UTP-EXT01
|
DVI over Cat6 extender with HDBaseT support & RS-232 port.
|
