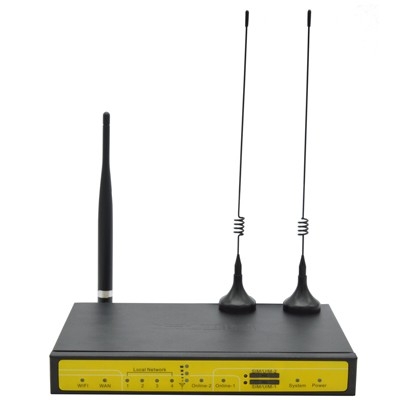

F3846 4G Dual-SIM WIFI Router
Quantity
Description
-
LTE/WCDMA
-
Samart Link Switch Backup
-
Powerful WIFI
-
Provide More Security Deployment Scenarios
-
Reliable Networking And Communication
-
Support APN/VPDN
-
Convenient configuration and maintenance interface
-
Support Local and Remote Firmware Upgrade
Features
![](https://en.four-faith.com/uploadfile/2015/0723/20150723041027286.png "\")
|
|
Smart Link Switch Backup
Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.
|
|
||
![\](https://en.four-faith.com/uploadfile/2015/0723/20150723041049599.png "\") |
Provide More Security Deployment Scenarios Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible |
|
|
 |
Specifications
Cellular Specification
|
Cellular Module
|
Industrial cellular module
|
|
Cellular Module
|
Industrial cellular module
|
|
Standard and Band
|
LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional)
DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz, 800/850/1900/2100MHz(optional) EDGE/GPRS/GSM 850/900/1800/1900MHz GPRS CLASS 10 GPRS CLASS 12 |
|
Bandwidth
|
LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps UMTS: 384Kbps |
|
TX power
|
<23dBm
|
|
RX sensitivity
|
<-97dBm
|
WIFI Specification
|
Item
|
Content
|
|
Standard
|
IEEE802.11b/g/n
|
|
Bandwidth
|
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
|
Security
|
WEP, WPA, WPA2, etc
WPS (optional) |
|
TX power
|
20dBm(11n),24dBm(11g),26dBm(11b)
|
|
RX sensitivity
|
<-72dBm@54Mpbs
|
Hardware System
|
Item
|
Content
|
|
CPU
|
Industrial 32bits CPU
|
|
FLASH
|
16MB(Extendable to 64MB)
|
|
SDRAM
|
128MB
|

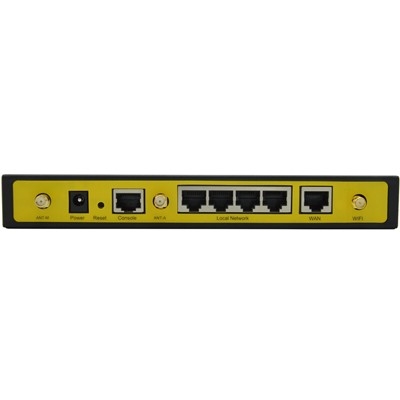

Interface type
|
Item
|
Content
|
|
WAN
|
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
|
|
LAN
|
4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
|
|
Serial
|
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6, 7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
|
Indicator
|
''Power'', ''System'', ''Online-1'', ''Online-2'', '' Local Network '', ''WAN'', ''WIFI'', ''Signal Strength''
|
|
Antenna
|
Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) |
|
SIM/UIM
|
Standard 3V/1.8V user card interface, 15KV ESD protection
|
|
Power
|
Standard 3-PIN power jack, reverse-voltage and overvoltage protection
|
|
Reset
|
Restore the router to its original factory default settings
|
 |
|
Power supply
|
Item
|
Content
|
|
Standard Power
|
DC 12V/1.5A
|
|
Power range
|
DC 5~36V
|
Consumption
|
Working condition
|
Consumption
|
|
Standby
|
290~340mA@12VDC
|
|
Communication
|
335~572mA@12VDC
|
|
Schedule Shutdown
|
2.57~4.2mA@12DVC
|
Physical Characteristics
|
Item
|
Content
|
|
Housing
|
Iron, providing IP30 protection
|
|
Dimensions
|
207x135x28 mm
|
|
Weight
|
790g
|
Environmental Limits
|
Item
|
Content
|
|
Operating Temperature
|
-35~+75ºC(-31~+167℉)
|
|
Storage Temperature
|
-40~+85ºC (-40~+185℉)
|
|
Operating Humidity
|
95% (unfreezing)
|
