This installation video demonstrates that units are really plug-and-play, and all you need is just plug in cables to get VGA signal extended over the fiber.

Description

The AN-VGA-EXT-01 Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

  • Transmits VGA video signals up to 10km over one fiber optic cable;
  • Support video resolution up to 1920*1080P@60Hz;
  • Support external stereo audio unidirectional transmission;
  • Support transmitter one channel signal output;
  • Support RS232 signal unidirectional transmission, baud rate self-adaptive;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

Specifications

Parameter
Description

Video
Standards
VGA
Maximum pixel clock
380MHz
Resolution
1920×1200@60Hz / 1920×1080@60Hz
1600×1200@60Hz / 1680×1050@60Hz
1280×1024@60Hz / 1280×1024@75Hz
1280×800@60Hz / 1280×768@60Hz
1280×720@60Hz /
1024×768@60Hz / 1024×768@75Hz
800×600@60Hz / 800×600@75Hz
Impedance
75Ω
Audio
Interface
3.5mm earphone seat
Format
44.1K,48K,96K,176K,192K
Signal type
Stereo
RS232
Interface
Industrial terminal
Signal direction
Unidirectional
Baud rate
Self-adaptive, Max£º115200bps
Data bits
8
Optical fiber
Interface
LC connector
Fiber type
Single-mode single fiber
Wavelength
Single-mode 1310nm
Interface bandwidth
3Gbps
Transmission distance
standard 10km
Other
Power supply
The power adapter: DC 5V/2A
Power dissipation
MAX 6W
Temperature
Operating: -5¡æ ~ +70¡æ
Humidity
Operating: 5% ~ 90%
Dimension
155*115*30mm
The warranty
1 year free warranty




Installation

Transmitter

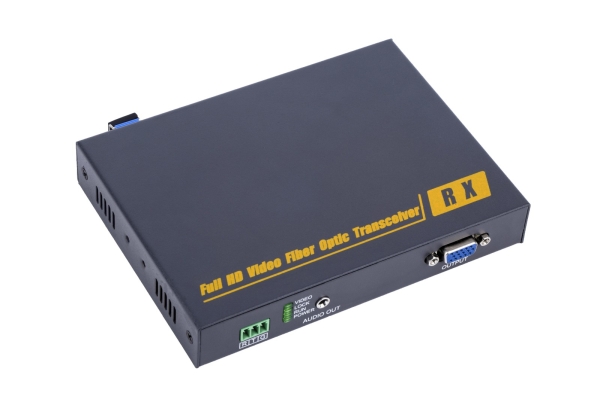

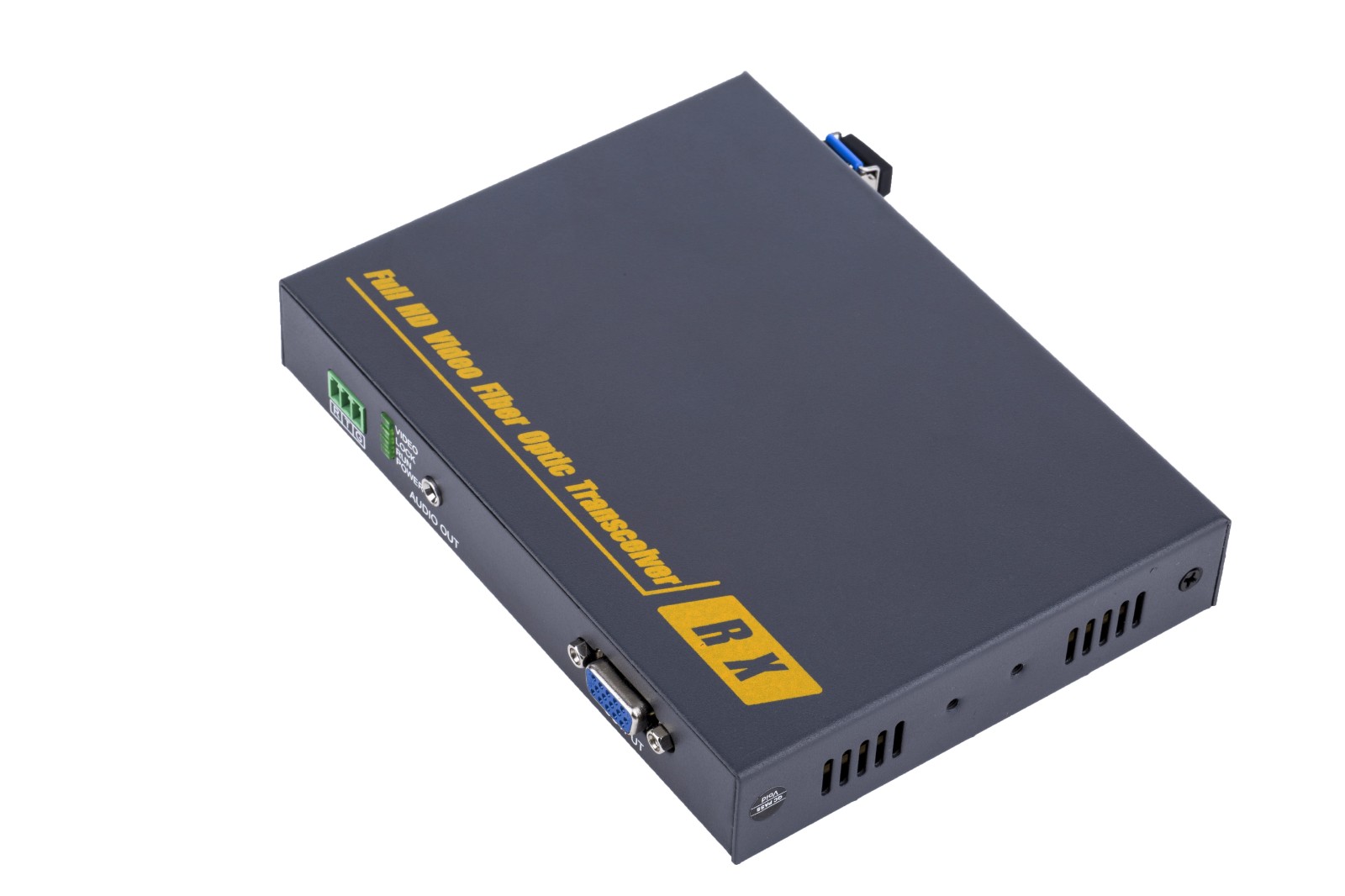

Receiver



Port name
Description
VGA IN/OUT
VGA signal input/output
AUDIO IN/OUT
Stereo audio signal input/output
RS232
Serial port£¨G: Ground, T: transmit, R: receive£©
DC/5V
Power adapter socket
FIBER
SFP module—LC connector
LED indicator
Description
VIDEO
Video signal connection indicator
LOCK
Video signal lock indicator
RUN
System status indicator
POWER
System power indicator
Installation
  1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
  2. Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source,
  3. Connect the VGA output port of receiver to the display device with VGA cable,
  4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

Ordering Information

AN-VGA-EXT-01
VGA signal input/output, Stereo audio signal input/output, Serial port£¨G: Ground, T: transmit, R: receive£©over fiber extender, distance depends on SFP module.
