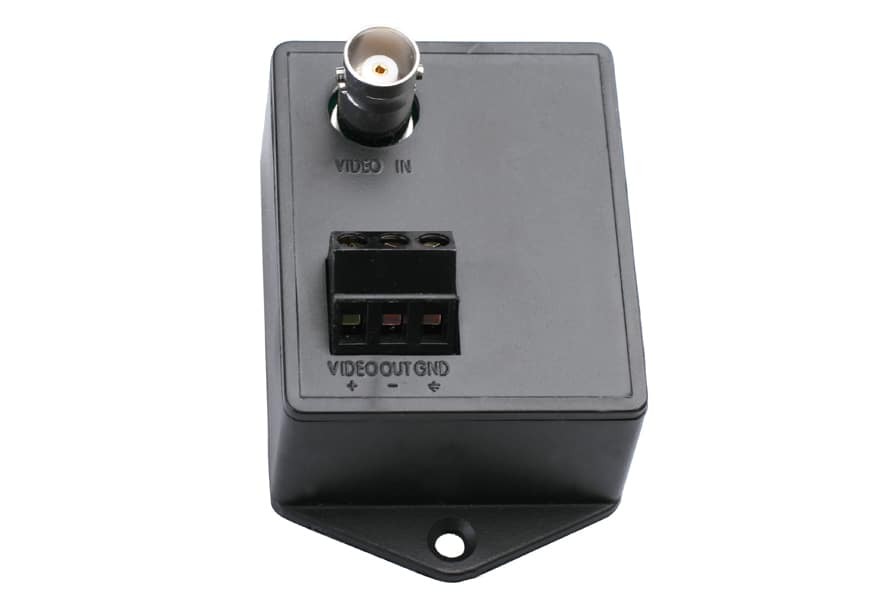

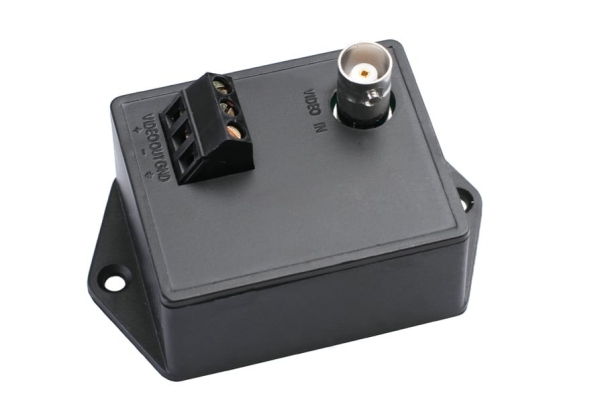

AN-V-PT/R V-Series Passive Video Balun
AN-V-PT/R V-Series Passive Video Balun Video Baluns (Video Over UTP Cat5) Video Audio Transmission Equipment AD-Net Selangor, Malaysia, Kuala Lumpur (KL), Petaling Jaya (PJ) Supplier, Suppliers, Supply, Supplies | Catacomm Corporation Sdn Bhd
Quantity

Description

PAL, NTSC, SECOM All-systems compatible;
Up to 225m(750 feet) works in conjunction with Ourten Passive Receivers, and 800m(2624 feet) with AD-net Active Receivers;
Immunity from noise interference, such as RFI and EMI;
No power supply;
Convenient installation.


Features

  • Better interference rejection than coax
  • UTP is less expensive than dedicated coax or fiber
  • Color-coded cabling
  • Unlimited bend radius
  • Physically smaller than coax
  • Easiest media to install and reconfigure
  • UTP is extremely easy to terminate
  • In many cases, the wire is already installed

Specifications


Normal Output Level      1Vp-p/ 75Ω
Bandwidth                       Video: DC to 6 MHz.”
Differential Gain             2%
Differential Phase
Signal-noise-ratio          60dB
Anti-interference           Built-in
Insertion Loss
Less than 1.5 dB per pair over the frequency range from DC to 6 MHz


Ordering Information


AN-V-PT
Single Channel Passive Transmitter, Screw terminals for UTP cable, Built-in transient protection, Female BNC.
AN-V-PR
Single Channel Passive Receiver, Screw terminals for UTP cable, Built-in transient protection, Female BNC.
