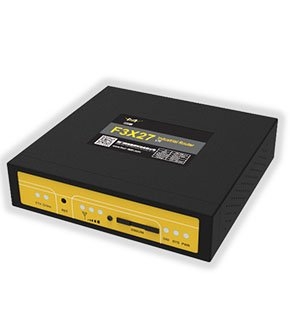

F3827 LTE&WCDMA Cellular Router
F3827 LTE&WCDMA Cellular Router 4G Industrial Router (1xLAN, No WIFI, No I/O Ports) Four-Faith Selangor, Malaysia, Kuala Lumpur (KL), Petaling Jaya (PJ) Supplier, Suppliers, Supply, Supplies | Catacomm Corporation Sdn Bhd
Quantity

Description

  • Low-consumption mode
  • OPENVPN, IPSEC
  • Ideal for ATM, Kiosks, Vending machine, Surveillance, Digital Signage and More
  • Support multi online trigger ways, including SMS, ring and data.
  • Support link disconnection when timeout
  • Scheduled online/offline mode
  • Provide management software for remote management

Features

  • Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
  • Housing: iron, providing IP30 protection.
  • Power range: DC 5~36V
  • Support hardware and software WDT
  • Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
  • Ethernet port: 1.5KV magnetic isolation protection
  • RS232/RS485/RS422 port: 15KV ESD protection
  • SIM/UIM port: 15KV ESD protection
  • Power port: reverse-voltage and overvoltage protection
  • Antenna port: lightning protection(optional)
  • Support standard RS232(or RS485/RS422), Ethernet port that can connect to serial, Ethernet devices directly
  • Support intellectual mode, enter into communication state automatically when powered
  • Provide management software for remote management
  • Support several work modes
  • Convenient configuration and maintenance interface£¨WEB or CLI£©
  • Support 2G/3G/HSPA/4G WAN access methods.
  • Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
  • Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
  • Support local and remote firmware upgrade,import and export configure file.
  • Support NTP, RTC embedded.
  • upport mulitiple DDNS provider service.
  • Support MAC Address clone, PPPoE Server
  • Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
  • Support APN/VPDN
  • Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
  • Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
  • Schedule Reboot, Schedule Online and Offline, etc...

Specifications

Cellular Specification
Cellular Module
Industrial cellular module
Standard and Band
LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional)
HSPA+/HSDPA/HSUPA/WCDMA /UMTS900/2100MHz, 800/850/1900/2100MHz(optional)
EDGE/GPRS/GSM 900/1800/1900MHz
GPRS CLASS 10
GPRS CLASS 12
Bandwidth
LTE(DL:100Mbps,UL:50Mbps)
HSUPA:5.76Mbps(Upload speed)
HSDPA:7.2Mbps(Download speed)
UMTS:384Kbps (DL/UL)
HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed)
TX power
<32dBm
RX sensitivity
<-93.3dBm

Hardware System

Item
Content
CPU
Industrial 32bits CPU
FLASH
16MB(Extendable to 64MB)
DDR2
128MB(Extendable to 256MB)

Interface type

Item
Content

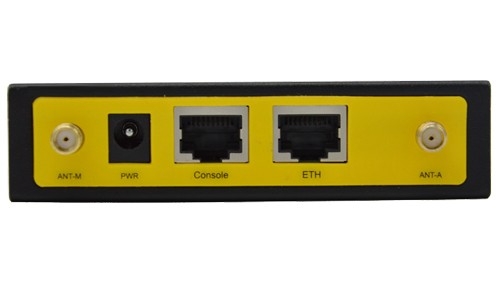

Ethernet
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, (space, mark) (optional)
Baud rate: 2400~115200 bps

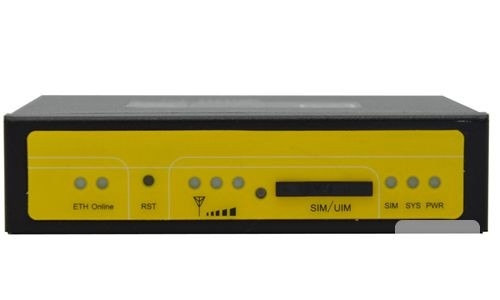

Indicator
''PWR'', ''SYS'', ''SIM'', ''Online'', ''ETH'', “Signal Strength”
Antenna
Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM
Standard 3V/1.8V user card interface, 15KV ESD protection
Power
Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset
Restore the router to its original factory default settings


Power supply

Item
Content
Standard Power
DC 12V/1.5A
Power range
DC 5~36V

Power consumption

Working state
Power consumption
Standby
83¡«90mA@12VDC
Working
113¡«135mA@12VDC
Timing shutdown
3.15~3.70mA@12DVC

Physical Characteristics

Item
Content
Housing
Iron, providing IP30 protection
Dimensions
100x97x25 mm
Weight
320g

Environmental Limits

Item
Content
Operating Temperature
-35~+75ºC£¨-31~+167¨H£©
Storage Temperature
-40~+85ºC (-40~+185¨H)
Operating Humidity
95% ( unfreezing)

Download

Specification
F3827 LTE&WCDMA ROUTER SPECIFICATION
F3827T LTE&WCDMA ROUTER SPECIFICATION

Use Manual
F3X27 Series ROUTER USER MANUAL

Software
Router firmware update tool
