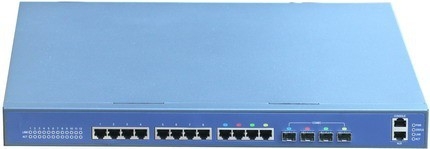

AN-L3-4012TF 12 Ports 10-100-1000 Base-T + 4 Ports Gigabit SFP Layer 3 Gigabit Switch
Quantity
Description
AN-L3-4012TF is a pure gigabit switch that offers 12 gigabit Tx ports, plus 4 gigabit SFP slots combo. AN-L3-4012TF security intelligent multi-layer switch is a new-generation switch for high security networks. With large capacity and high performance switching, it also features advanced security. It is the premium option for the convergence layer access control of small or middle-sized MAN, or the access switch for enterprise users.
Supports comprehensive ACL access control policies, including: user MAC address based ACL,IP protocol TCP/UDP) based ACL, TCP port number based ACL, UDP port number based and time based ACL. Can identify legal service terminals with bounded VLAN-IP-MAC; supports user access control protocol 802.1x, provides more efficient user port control than the traditional method; The port MAC address limitation function can control the host number accessing the specified port.
Features
Advanced Security
-
Comprehensive ACL access control policies
-
User MAC address based ACL list definition
-
IP protocol (TCP/UDP) based ACL
-
TCP port number based ACL
-
UDP port number based and time based ACL
-
Can identify legal service terminals with bounded VLAN-IP-MAC
-
Supports user access control protocol 802.1x
-
Provides more efficient user port control than the traditional method
-
Port MAC address limitation function can control the host number accessing the specified port;
-
Supports PVLAN
-
Offers strict port segregation within 802.1Q VLAN
-
Patented CPU protection technique checks and filters the data sent to the CPU to avoid malicous attacks
-
Several authentications for protocols such as RIP, OSPF, etc
Flexible QOS
-
Supports intelligent QoS to meet the high quality demand for voice, video and other real-time multimedia services
-
Priority based on IEEE802.1P tagged information and quintuple flow classification service
-
Supports flow-based multilayer CoS and ToS to meet the demand of real-time multimedia service such as ideo conference; Self-defined multilayer flow classification rules, with 1024 flow rules supported in one device
-
8 priority queues supported per port, with congestion prevention and flow-shaping
Comprehensive routing protocol support
-
Supports a rich set of routing technology which covers almost all the current existing routing technologies
-
Supports unicast routing protocols: RIP V1, RIP V2, OSPF, BGP, static routing
-
Supports multicast routing protocols: IGMP, PIM-SM
-
Supports redundancy backup protocol: VRRP
-
Convenient Maintenance and Control
-
Supports NM methods such as SNMP, CLI, RMON, TELNET, WEB; Supports BOOTP,TFTP and FTP
Specification
Model
|
AN-L3-4012TF
|
System
|
|
Port Number
|
12 ports Gigabit TX interfaces, 4 Port Gigabit SFP slots
|
Switching Capacity
|
24G
|
Packet Forward Capability
|
17.8Mpps
|
Power Consumption
|
<30W
|
Basic Performance
|
|
MAC Address Table
|
16K
|
Routing Table Entries
|
4K
|
Buffer Capacity
|
Shared 32M
|
Forwarding Mode
|
Store-and-forward
|
Network and Flow Control
|
|
PVLAN
|
Yes
|
VLAN
|
802.1Q 4k
|
QoS
|
8 priority queues per port; flow shaping and rich scheduling methods
|
Queue Dispatching Methods
|
WRR, SP, WRR+SP
|
Port Convergence
|
FE, GE port convergence; maximum 32 groups with 8 ports per group
|
Routing Protocols
|
|
Unicast
|
Static Routing, RIP V1/V2, OSPF V2,
|
Multicast
|
IGMP, PIM-SM,
|
Policy Routing
|
Yes
|
QoS routing
|
Yes
|
Num of Routing Interfaces
|
512
|
Security Feature
|
|
802.1X
|
Yes
|
PORTAL
|
Yes
|
STP
|
Yes
|
ACL
|
1K
|
MAC address limitation
|
Yes
|
Broadcast Strom Suppression
|
Yes
|
CPU Protection
|
Yes
|
Management Features
|
|
SNMP
|
SNMP V1 /V2c/V3
|
RMON
|
1, 2, 3, 9
|
HTTP
|
Yes
|
CLI
|
Yes
|
Dimension (L*W *H)
|
443mm×360mm×44.5mm
|
Working Environment
|
0~40¡æ 10¡«90£¥ non-condensing
|
Weight
|
<6.5Kg
|
Ordering Information
AN-L3-4012TF
|
12 Port 10/100/1000 Base-T + 4 Port Gigabit SFP Layer 3 Gigabit Switch.
|
