Description
Features
-
Comprehensive ACL access control policies.
-
User MAC address based ACL list definition.
-
IP protocol (TCP/UDP) based ACL.
-
TCP port number based ACL.
-
UDP port number based and time based ACL.
-
Can identify legal service terminals with bounded VLAN-IP-MAC.
-
Supports user access control protocol 802.1x.
-
Provides more efficient user port control than the traditional method.
-
Port MAC address limitation function can control the host number accessing the specified port.
-
Supports PVLAN.
-
Offers strict port segregation within 802.1Q VLAN.
-
Patented CPU protection technique checks and filters the data sent to the CPU to avoid malicous attacks.
-
Several authentications for protocols such as RIP, OSPF, etc.
-
Supports intelligent QoS to meet the high quality demand for voice, video and other real-time multimedia services.
-
Priority based on IEEE802.1P tagged information and quintuple flow classification service.
-
Supports flow-based multilayer CoS and ToS to meet the demand of real-time multimedia service such as ideo conference; Self-defined multilayer flow classification rules, with 1024 flow rules supported in one device.
-
8 priority queues supported per port, with congestion prevention and flow-shaping.
-
Supports a rich set of routing technology which covers almost all the current existing routing technologies.
-
Supports unicast routing protocols: RIP V1, RIP V2, OSPF, BGP, static routing.
-
Supports multicast routing protocols: IGMP, PIM-SM.
-
Supports redundancy backup protocol: VRRP.
-
Convenient Maintenance and Control.
-
Supports NM methods such as SNMP, CLI, RMON, TELNET, WEB; Supports BOOTP,TFTP and FTP.
Specification
|
Model |
STCS4012ST |
|
System |
|
|
Port Number |
8 ports Gigabit SFP interfaces, 4 Port Gigabit Tx |
|
Switching Capacity |
24G |
|
Packet Forward Capability |
17.8Mpps |
|
Power Consumption |
<30W |
|
Basic Performance |
|
|
MAC Address Table |
16K |
|
Routing Table Entries |
4K |
|
Buffer Capacity |
Shared 32M |
|
Forwarding Mode |
Store-and-forward |
|
Network and Flow Control |
|
|
PVLAN |
Yes |
|
VLAN |
802.1Q 4k |
|
QoS |
8 priority queues per port; flow shaping and rich scheduling methods |
|
Queue Dispatching Methods |
WRR, SP, WRR+SP |
|
Port Convergence |
FE, GE port convergence; maximum 32 groups with 8 ports per group |
|
Routing Protocols |
|
|
Unicast |
Static Routing, RIP V1/V2, OSPF V2, |
|
Multicast |
IGMP, PIM-SM, |
|
Policy Routing |
Yes |
|
QoS routing |
Yes |
|
Num of Routing Interfaces |
512 |
|
Security Feature |
|
|
802.1X |
Yes |
|
PORTAL |
Yes |
|
STP |
Yes |
|
ACL |
1K |
|
MAC address limitation |
Yes |
|
Broadcast Strom Suppression |
Yes |
|
CPU Protection |
Yes |
|
Management Features |
|
|
SNMP |
SNMP V1 /V2c /V3 |
|
RMON |
1, 2, 3, 9 |
|
HTTP |
Yes |
|
CLI |
Yes |
|
Dimension (L*W *H) |
443mm×360mm×44.5mm |
|
Working Environment |
0~40¡æ 10¡«90£¥ non-condensing |
|
Weight |
<6.5Kg |
Ordering Information
|

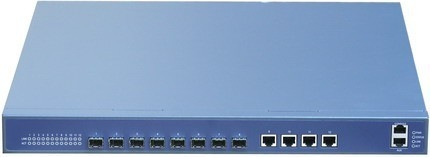

AN-L3-4012ST |
8 Port Gigabit SFP X 4 Port Gigabit Tx Layer 3 Gigabit Routing Switch. |
