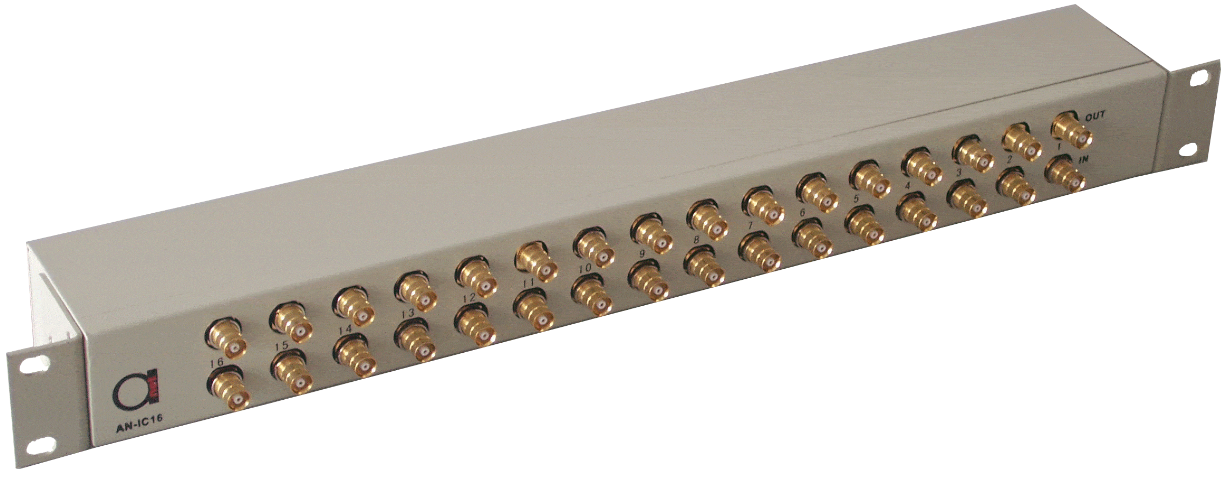

AN-IC16-L9 G.703 rack mount balun panel lets you match the connectors, impedance and signal characteristics of up to 16 dual coax L9 (DIN1.6/5.6) connections (75 ohm) with up to 16 twisted pair connections (120 ohm). Operating in compliance with the CCITT G.703 specification, the AN-IC16-L9 occupies only 2U (3.5″/8.9 cm) of vertical rack space in a 19″ (48.3 cm) rack-allowing for efficient multiport matching.

L9 (DIN1.6/5.6) connectos, used in this series AN-IC16-L9 balun panels are screw coupling miniature coaxial connectors, which are developed and manufactured according to specification of IEC169-13, CECC 22240 and DIN 47295. They have the characteristics of small size, high mechanical and electrical stability and used in many types of communication equipments.


Features

  • Connects 75 ohm dual coax to 120 ohm twisted pair (or visa versa)
  • Bi-directional signal conversion according to CCITT G.703
  • Data rates up to 2.048 Mbps
  • Low profile design
  • Mounts in standard 19″ (48.3 cm) Rack
  • No AC power or batteries required
  • L9 (DIN1.6/5.6) BNC 75 ohm type connectors
  • RJ-45 120 OHM type connectors at opposite side.


Specifications


Transmission Line: CCITT G.703 (unstructured) E1 type
Data Rate: 2.048 Mbps

75 Ohm Connection:
Characteristic impedance: 75Ω
Working voltage: 330V max
Frequency range: 0~1GHz
Dielectric withstanding voltage: at sea level 1000V (volts RMS)
Contact resistance: center contact ≤10.0mΩ
Outer contact ≤5.0mΩ
Insulation resistance: ≥1000MΩ
120 Ohm Connection: Shielded RJ-45 jack
Power Supply: none required
Link-to-Data Isolation: 500 Volts AC/DC
Temperature Range: 32-122 °F (0-75 C)
Data Rate: 19″ wide x 3.5″ high x 1.9″ deep (48.3 x 8.9 x 4.8 cm)



Application Scenario





Additional information


Port Quantity
16

Ordering Information

AN-IC16-L9
G.703 Balun Panel (75-Ohm L9 (DIN1.6/5.6) to 120-Ohm RJ-45) for modular 19' rack mount's
